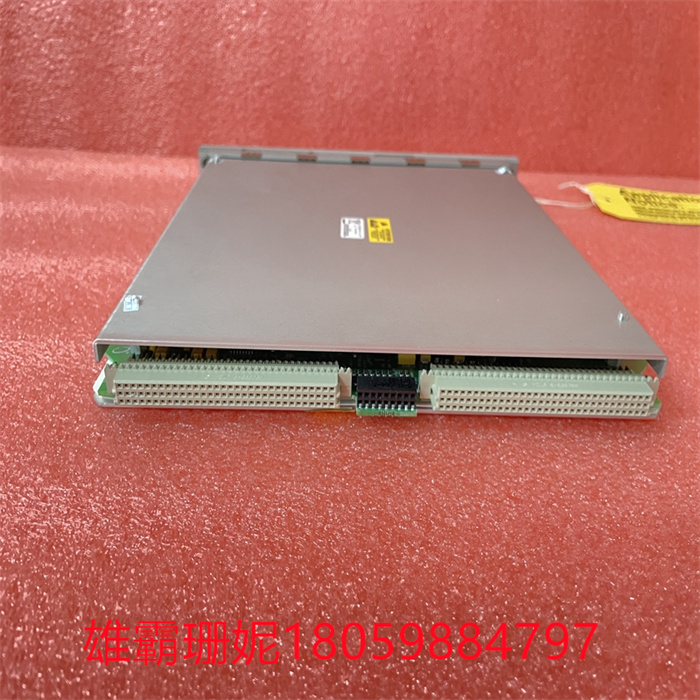

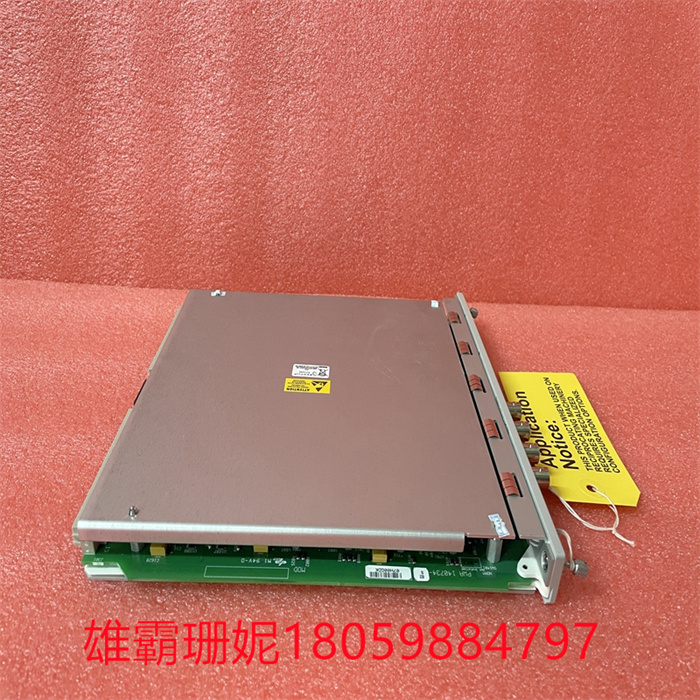

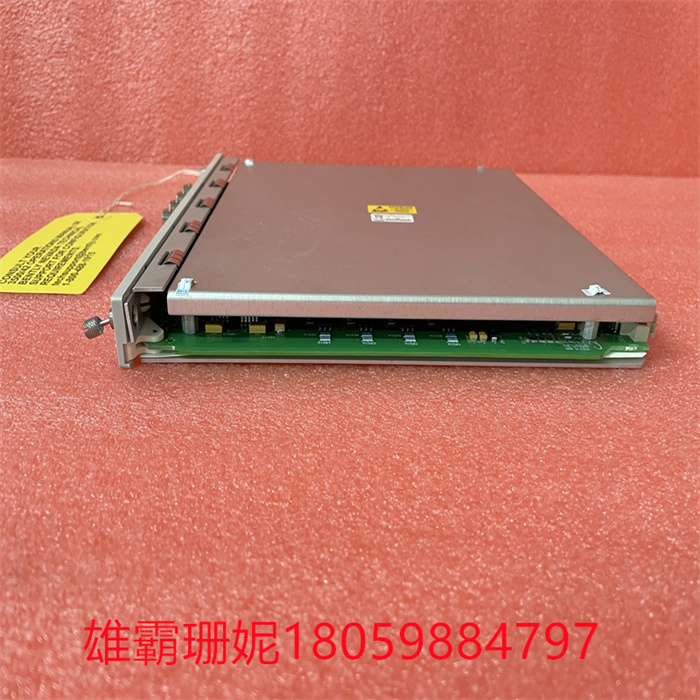

BENTLY 3500-42M 前置器地震监测仪

BENTLY 3500-42M 前置器地震监测仪

BENTLY 3500-42M 前置器地震监测仪

3500/42M 是由 Bently Nevada 开发的 Proximitor Seismic Monitor 组件。它是一个四通道监视器，具有接近和地震传感器输入。它将经过调节的信号与用户可编程的警报进行比较，并调节信号以产生振动和位置读数。3500 机架配置软件可用于对每个通道进行编程，以监控和报告径向振动、推力位置、REBAM、加速度、膨胀差、偏心率、速度和其他参数

3500/42M 特点

监控通道成对设置，最多可以同时执行两个指定的功能。例如，通道 1 和 2 可以执行一个功能，而通道 3 和 4 执行另一个或相同的功能。

Proximitor Seismic Monitor 通过实时比较监测参数与选定的警报设置点并触发警报来保护机械。它通知操作和维护人员有关关键机器信息的信息。

根据安排，每个通道通常会调节其输入信号以产生一组静态值。可以为任何当前静态值建立警报设置点，也可以为其中任意两个设置危险设置点。

使用机架配置软件为监视器测量的任何值设置警报级别，并为监视器测量的任意两个值设置危险设置点。对于每个测量值，警报可以设置为满量程的 0 到 100%。当满量程范围超过传感器的范围时，设定点受传感器范围的限制。

BENTLY 3500-42M 前置器地震监测仪

3500/42M is a Proximitor Seismic Monitor component developed by Bently Nevada. It is a four-channel monitor with proximity and seismic sensor inputs. It compares the tuned signal with a user-programmable alarm and adjusts the signal to produce vibration and position readings. The 3500 rack configuration software can be used to program each channel to monitor and report radial vibration, thrust position, REBAM, acceleration, expansion differential, eccentricity, speed, and other parameters

3500/42M features

The monitoring channels are set up in pairs and can perform up to two specified functions simultaneously. For example, channels 1 and 2 May perform one function, while channels 3 and 4 perform another or the same function.

Proximitor Seismic Monitor protects machinery by comparing monitoring parameters in real time with selected alarm setting points and triggering alarms. It informs operations and maintenance personnel of information about critical machine information.

According to the arrangement, each channel usually adjusts its input signal to produce a set of static values. You can create an alert setting point for any current static value, and you can set a danger setting point for any two of them.

Use the rack configuration software to set an alarm level for any value measured by the monitor and a danger setting point for any two values measured by the monitor. For each measurement, the alarm can be set to 0 to 100% of the full scale. When the full scale range exceeds the range of the sensor, the set point is limited by the range of the sensor.

BENTLY 3500-42M 前置器地震监测仪
