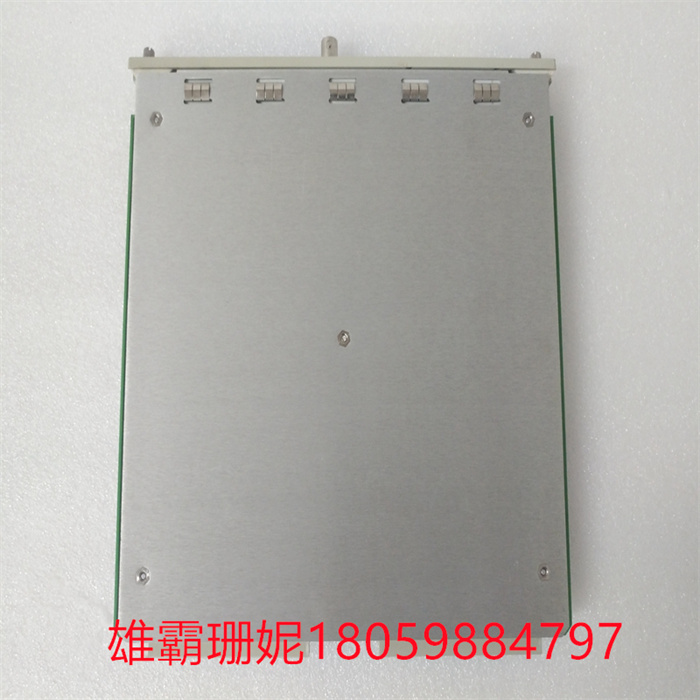

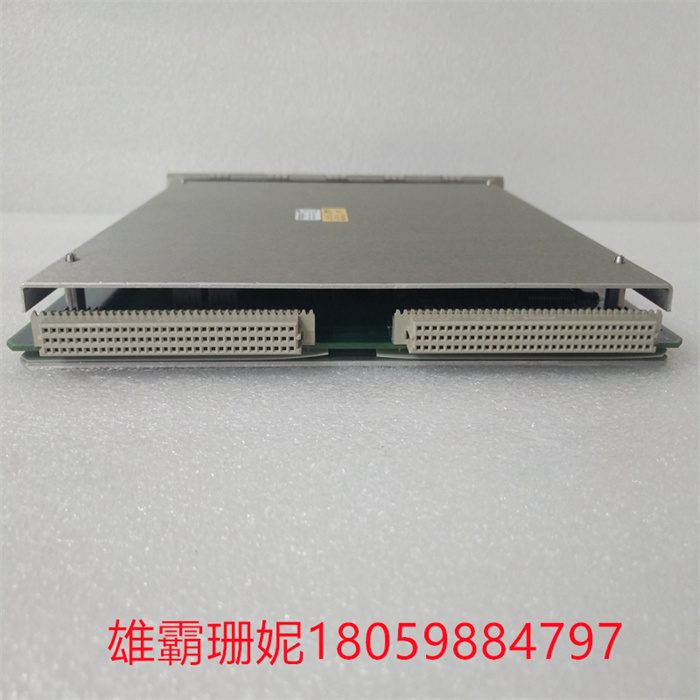

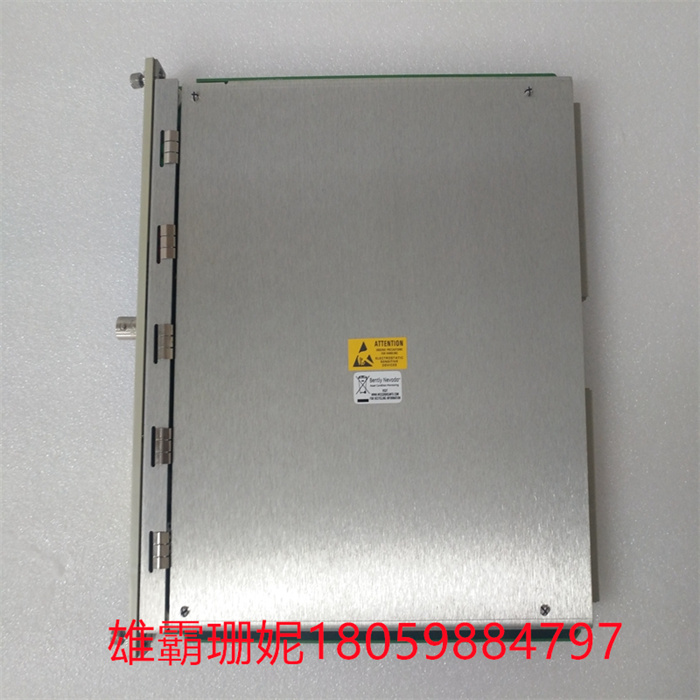

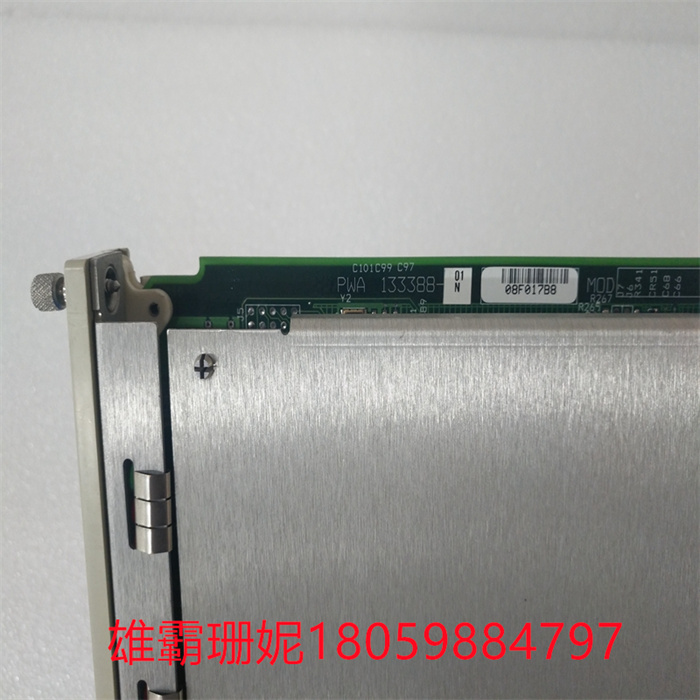

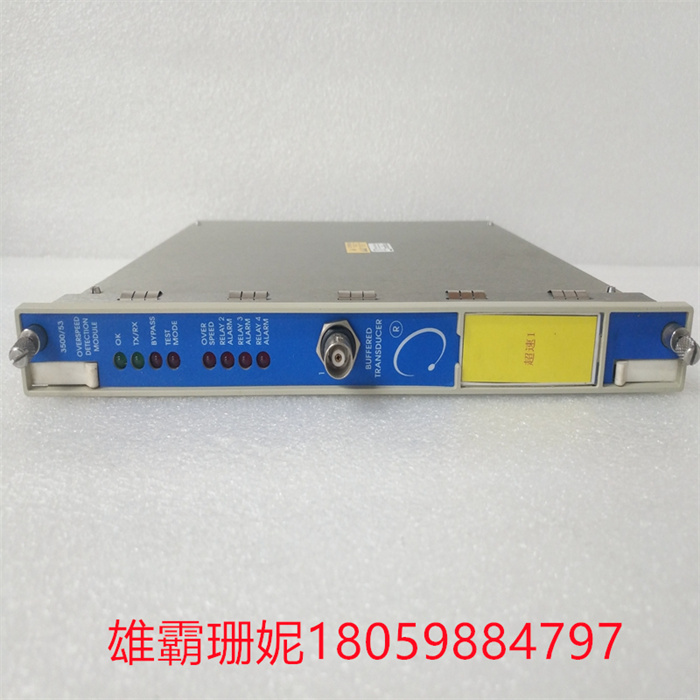

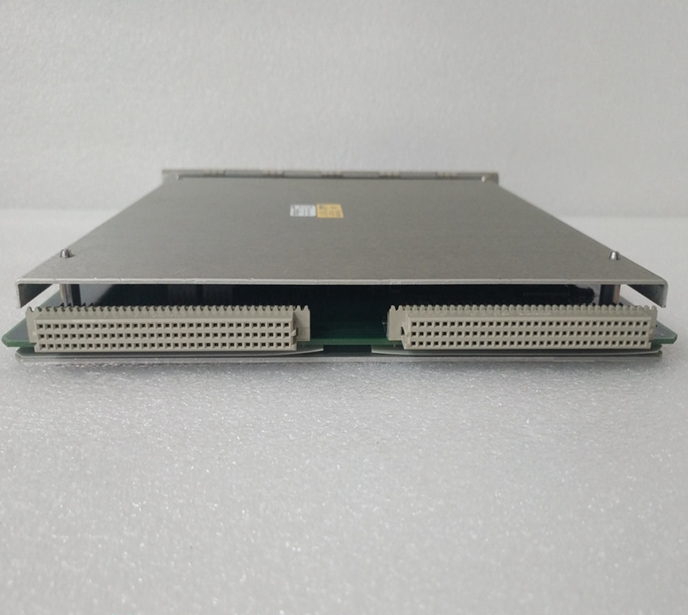

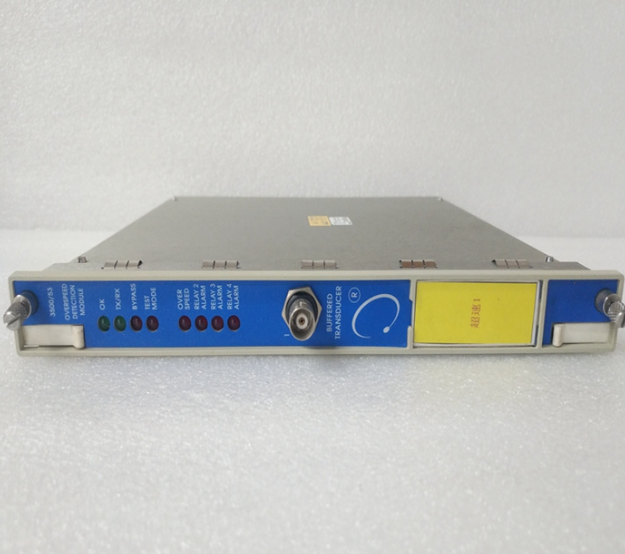

BENTLY 3500-53 133388-01 检测系统模块

BENTLY 3500-53 133388-01 检测系统模块

BENTLY 3500-53 133388-01 检测系统模块

美国本特利（bently nevada）公司的bently3500系统提供连续、在线监测功能，适用于机械保护应用。bently3500系统组成：3500/05 仪表框架；一或两个 3500/15 电源；3500/20 框架接口模块；一或两个3500/25 键相器模块；3500 框架组态软件；一个或多个 3500/32 继电器模块或3500/33 16通道继电器模块；一个或多个 3500/92 通讯网关模块；一个或多个 3500/XX 监测器模块，3500/42M 位移/速度加速度监测器；3500/40M位移监测器；3500/45 差胀/轴向位置监测器；3500/50 转速模块；3500/53 超速检测模块等。3500/XX 监测器模块可接来自bently3300系统的信号，bently3300系统即传感器系统，包括传感器探头，前置器，延伸电缆等。电涡流传感器探头330101，330102，330103，330104，330105，330106，330851，速度传感器和加速度传感器9200，330500等；前置器330180，330780等；延伸电缆330130，330780等。传感器通常安装于机器内部或表面，用于测量轴振动、瓦振、位移、转速、偏心、键相、转速、差胀等。另外还有1900系列，如1900/65，测试、模拟和校准仪器：如TK3-2 电涡流探头校准仪，RK 4 转子试验台等。

BENTLY 3500-53 133388-01 检测系统模块

Bently nevada's bently3500 system provides continuous and online monitoring function, which is suitable for mechanical protection applications. Bently3500 system composition: 3500/05 instrument frame; One or two 3500/15 power supplies; 3500/20 frame interface module; One or two 3500/25 key phaser modules; 3500 framework configuration software; One or more 3500/32 relay modules or 3500/33 16-channel relay modules; One or more 3500/92 communication gateway modules; One or more 3500/XX monitor modules and 3500/42M displacement/velocity acceleration monitors; 3500/40M displacement monitor; 3500/45 differential expansion/axial position monitor; 3500/50 speed module; 3500/53 overspeed detection module etc. The 3500/XX monitor module can receive the signal from bently3300 system, which is the sensor system, including sensor probe, preamplifier, extension cable, etc. Eddy current sensor probes 330101, 330102, 330103, 330104, 330105, 330106, 330851, speed sensors and acceleration sensors 9200, 330500, etc. Preprocessors 330180, 330780, etc. Extension cables 330130, 330780, etc. Sensors are usually installed inside or on the surface of the machine to measure shaft vibration, tile vibration, displacement, speed, eccentricity, key phase, speed, differential expansion and so on. In addition, there are 1900 series, such as 1900/65, testing, simulation and calibration instruments, such as TK3-2 eddy current probe calibrator and RK 4 rotor test bench.

BENTLY 3500-53 133388-01 检测系统模块
