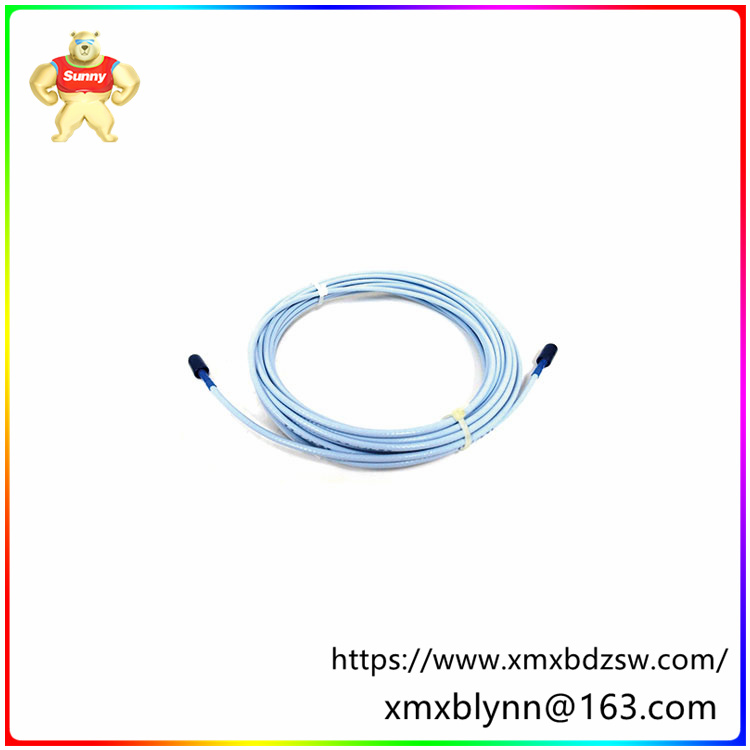

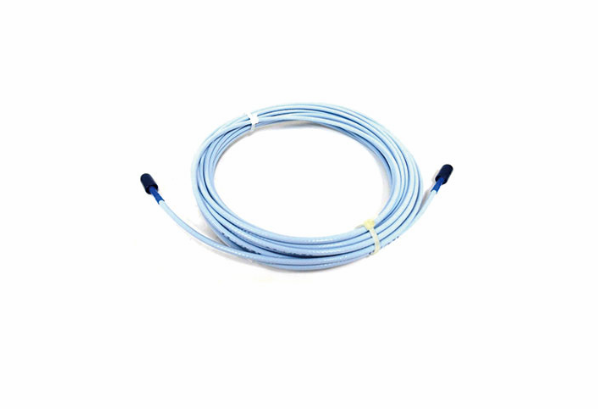

330130-085-01-05 延长电缆 提供了更坚固、更耐用的外壳

>>>>>型号:   330130-085-01-05    延长电缆   提供了更坚固、更耐用的外壳

【功能描述】

部件号： 330130-085-01-05

制造商： Bently Nevada

产品类型： 3300 XL 8 mm 延长电缆

可用性： 有现货

原产国： 美国

产品系列： 3300 XL， 3300XL， 3300-XL

电缆长度： 8.5 米 （27.9 英尺）

装甲和电缆选项 ： 24 = 高温 FluidLoc 电缆

延长电缆材料： 75 欧姆三轴全氟烷氧基乙烯 （PFA） 绝缘 FluidLoc 电缆。

工作和存储温度：-35°C 至 +200°C（-31°F 至 +392°F）

延长电缆电容：69.9 pF/m （21.3 pF/ft） 典型值

330130-085-01-05 是由Bently Nevada制造的3300 XL标准延长电缆，用于接近传感器系统。接近传感器出厂时经过AISI 4140钢的标准校准。可以根据需要校准到其他目标材料。您可以咨询本特利内华达州应用程序。在评估该传感器系统进行转速计或超速测量时，请注意将涡流接近探头用于超速保护应用时要考虑的因素。在物理和技术上，非 XL 3300 5 和 8 mm 组件可以更换为 3300 XL 8 mm 组件。即使 3300 XL Proximitor® 传感器的包装与其前代产品不同，当与相同安装底座的 4 孔安装模式一起使用时，它仍然设计为适合相同的 4 孔安装模式，并且将遵守相同的安装空间要求。

当 XL 和非 XL 3300 系列 5 和 8 mm 系统组件组合在一起时，系统性能仅限于非 XL 3300 5 和 8 mm 传感器系统标准。

3300 系列 5 mm 探头（参见规格和订购信息 p/n 141605-01）的物理占地面积比 8 mm 探头小，但不能在减小侧视间隙或尖端间距的情况下使用。

当物理（而非电气）限制禁止使用 8 mm 探头时，使用这种方法。当需要窄侧视探头时，请使用 3300 NSvTM 接近传感器系统。

8 mm 探头在模制 PPS 塑料探头尖端中提供更厚的探头线圈封装。因此，探头变得更加坚固。

探头主体直径的增加也提供了更坚固、更耐用的外壳。为了获得最佳的抗物理虐待的鲁棒性，Bently Nevada 建议在可行的任何情况下使用 8 mm 探头。

【英文介绍】

Part number: 330130-085-01-05

Manufacturer: Bently Nevada

Product Type: 3300 XL 8 mm extension cable

Availability: In stock

Country of origin: USA

Product series: 3300XL, 3300XL, 3300-XL

Cable Length: 8.5 m (27.9 ft)

Armor and cable options: 24 = high temperature FluidLoc cable

Extension cable material: 75 ohms triaxial perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.

Operating and storage temperatures: -35°C to +200°C (-31°F to +392°F)

Extension cable capacitance: 69.9pF /m (21.3pF /ft) typical value

The 330130-085-01-05 is a 3300 XL standard extension cable manufactured by Bently Nevada for use in proximity sensor systems. The proximity sensor is factory calibrated to AISI 4140 steel. Can be calibrated to other target materials as needed. You can consult the Bentley Nevada application. When evaluating this sensor system for tachometer or overspeed measurements, note the factors to consider when using vortex proximity probes for overspeed protection applications. Physically and technically, non-XL 3300 5 and 8 mm components can be replaced with 3300 XL 8 mm components. Even though the packaging of the 3300 XL Proximitor® sensor is different from that of its predecessor, it is still designed to fit the same 4-hole mounting mode when used with a 4-hole mounting mode on the same mounting base and will comply with the same mounting space requirements.

When XL and non-XL 3300 series 5 and 8 mm system components are combined, system performance is limited to the non-XL 3300 5 and 8 mm sensor system standard.

The 3300 Series 5 mm probe (see Specifications and ordering information p/n 141605-01) has a smaller physical footprint than the 8 mm probe, but cannot be used with reduced side-view clearance or tip spacing.

This method is used when physical (rather than electrical) constraints prohibit the use of 8 mm probes. When a narrow side-view probe is required, use the 3300 NSvTM proximity sensor system.

The 8 mm probe provides a thicker probe coil package in the molded PPS plastic probe tip. As a result, the probe becomes more robust.

The increase in the diameter of the probe body also provides a stronger and more durable housing. For optimal robustness against physical abuse, Bently Nevada recommends the use of an 8 mm probe whenever feasible.
