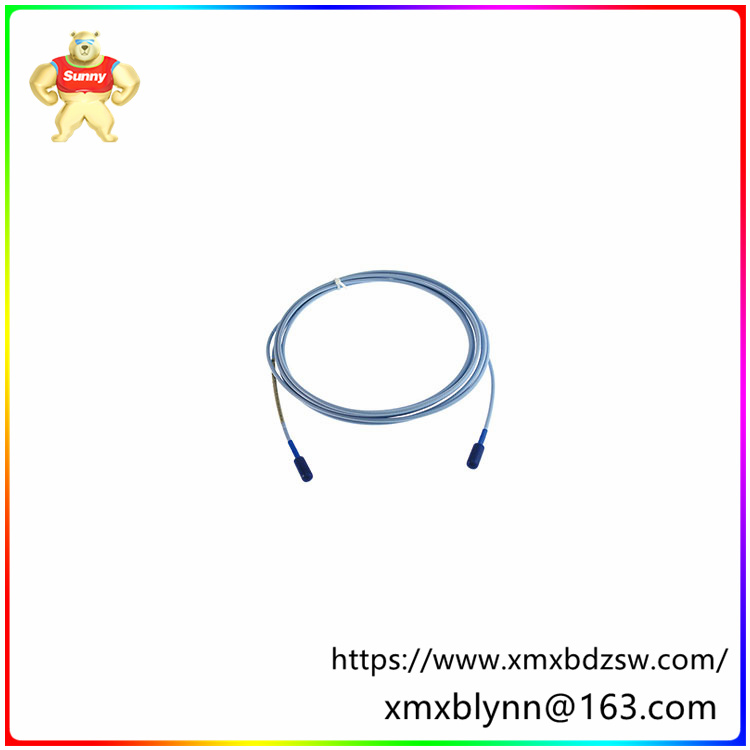

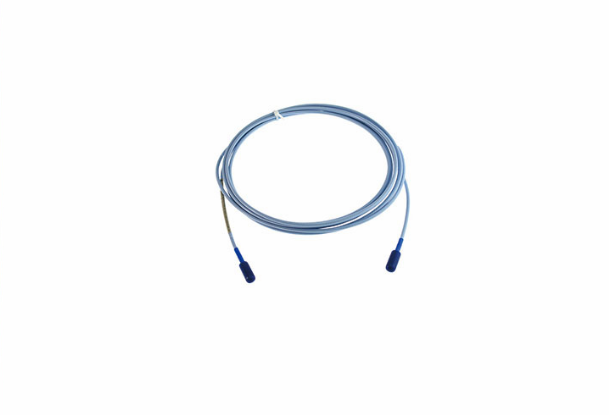

>>>>>型号:330130-080-03-00 传感器系统的延长电缆 支持探头、延长电缆
【功能描述】
特征
用于3300 XL传感器系统的延长电缆
长度从3米到8.5米不等
电缆类型包括:
标准电缆
铠装电缆
FluidLoc电缆
提供CSA、ATEX、IECEx 认证
GE / Bently Nevada 3300 XL 8mm 接近传感器系统由一个 3300 XL 8mm 探头、一个 3300 XL 延长电缆和一个 3300 XL 近邻传感器组成。该系统提供的输出电压与探头尖端与观察到的导电表面之间的距离成正比，可以测量静态（位置）和动态（振动）值。该系统的主要应用是液膜轴承机床的振动和位置测量，以及Keyphasor参考和速度测量。标准的 3300 XL 8 mm 5 米系统在机械配置、线性范围、精度和温度稳定性方面也完全符合美国石油协会 （API） 670 标准（第 4 版）。所有 3300 XL 8 mm 接近传感器系统均提供这种性能水平，并支持探头、延长电缆和 Proximitor 传感器的完全互换性，无需匹配或校准单个组件。
每个 3300 XL 8 mm 传感器系统组件都向后兼容，并可与其他非 XL 3300 系列 5 mm 和 8 mm 传感器系统组件互换。这种兼容性包括 3300 5 mm 探头，适用于 8 mm 探头对于可用安装空间来说太大的应用。
【英文介绍】
trait
Extension cable for 3300 XL sensor system
The length varies from 3 to 8.5 meters
Cable types include:
Standard cable
Armoured cable
FluidLoc cable
CSA, ATEX, IECEx certification
The GE/Bently Nevada 3300 XL 8mm proximity sensor system consists of a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL nearest neighbor sensor. The system provides an output voltage that is proportional to the distance between the probe tip and the observed conductive surface, allowing both static (position) and dynamic (vibration) values to be measured. The main applications of the system are vibration and position measurement of liquid film bearing machine tools, as well as Keyphasor reference and velocity measurement. The standard 3300 XL 8 mm 5 meter system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) in terms of mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8 mm proximity sensor systems offer this level of performance and support full interchangeability of the probe, extension cable and Proximitor sensors without the need to match or calibrate individual components.
Each 3300 XL 8 mm sensor system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm sensor system components. This compatibility includes 3300 5 mm probes for applications where 8 mm probes are too large for available mounting space.
