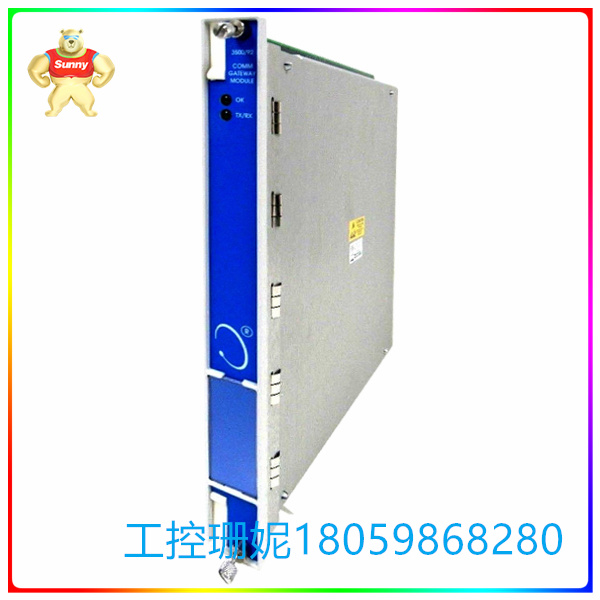

3500/92-0201-00 通讯网关 具有广泛的通讯能力

☆型号：3500/92-0201-00 通讯网关 具有广泛的通讯能力

【产品详情】

3500/92通讯网关具有广泛的通讯能力，可通过以太网TCP/1P和串行通讯协议将所有框架的检测数据和状态与过程控制和其他自动化系统集成。它也支持与3500框架组态软件和数据采集软件的以太网通讯。支持的协议包括:

1、Modicon Modbus(通过串行通讯)

2、Modbus/TCP(用于TCP/IP以太网通讯的串行Modbus的另一种形式)

3、有的Bently Nevada协议 (与3500框架组态和教据采集软件包通讯)3500/92通过RJ45与10BASE-T星型拓扑以太网络链接3500/92具有与3500/90相同的通讯接口，通讯协议以及其它特点，不同的是，3500/92具有可组态的Modbus寄存器功能，能提供与原始值寄存一样的功能

技术规格:

输入:

功率消耗: 对于Modbus@ RS232/RS422 I/0模块，典型值为5瓦对于Modbus RS485 I/0模块，典型值为5.6瓦数据类型:从框架中的其它模块通过告诉内部网络采集的数据，如带有时间标志的当前比例值、模块状态和当前报警状态。返回的确切数据类型取决于模块类型和通道组态

☆型号：3500/92-0201-00 通讯网关 具有广泛的通讯能力

【英文介绍】

The 3500/92 communication gateway has extensive communication capabilities to integrate all framework inspection data and status with process control and other automation systems via Ethernet TCP/1P and serial communication protocols. It also supports Ethernet communication with the 3500 framework configuration software and data acquisition software. Supported protocols include:

1. Modicon Modbus(via serial communication)

2, Modbus/TCP(another form of serial Modbus for TCP/IP Ethernet communication)

3, some Bently Nevada protocol (with 3500 framework configuration and data acquisition software package communication) 350/92 through RJ45 and 10BASE-T star topology Ethernet link 350/92 with 3500/90 the same communication interface, communication protocol and other features, the difference is that, The 3500/92 features configurable Modbus registers that provide the same functionality as the original value store

Technical specifications:

Input:

Power consumption: For the Modbus@RS232 /RS422 I/0 module, the typical value is 5 watts for the Modbus RS485 I/0 module, the typical value is 5.6 watts Data type: Data collected from other modules in the framework by telling the internal network, such as the current scale value with time stamp, module status and current alarm status. The exact data type returned depends on the module type and channel configuration

☆型号：3500/92-0201-00 通讯网关 具有广泛的通讯能力
