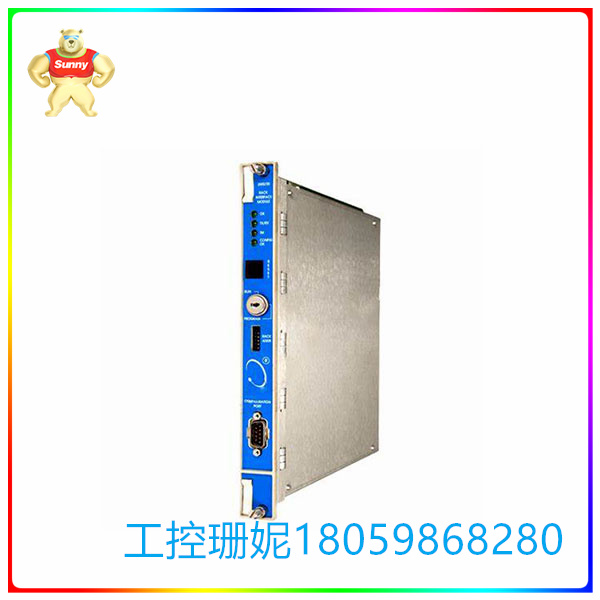

☆型号：3500/22-02-01-00 接口模块 振动监测系统
【产品详情】
描述
标题：现货批发本特利Bently Nevada 3500振动监测系统3500/22M接口模块
本特利(BENTLY)振动检测系统3500 介绍：
本特利Bently Nevada 3500系统机械保护系统,监测器模块测量范围广泛，满足美国石油协会670标准，可用于轴振动、轴位移、键相位、转速、偏心、差胀等的测量，接受来自本特利振动传感器探头、bently3300电涡流传感器系统（本特利Bently 3300XL传感器探头、延长电缆、前置器）以及330500、9200等。
产品型号：3500/22M 带有TDI的框架接口模块
3500/22-01-01-00
3500/22-01-01-01
146031-01后背板
特点：
通讯网关具有广泛的通讯能力
抗干扰能力强
系统稳定性高
技术参数：
信号:
+/-10 Vdc I/O: -10 Vdc
到+10 Vdc
4-20mA安全栅I/O: 4-
20mA DC
输入阻抗:
4-20mA绝缘I/O: 50Ω
4-20mA安全栅I/O: 50Ω
+/-10V I/O: 1 M Ω
信号调节
设计温度+25°C (+77°F)。每一
通道的满量程范围在现场通过
3500组态软件，不要求校准
精度:
通常在满量程的±0/33%之内，
最大为±1%
满量程范围:
信号输入的范围最大可分成
2000个单元；电压信号输入的
最小范围为2V
☆型号：3500/22-02-01-00 接口模块 振动监测系统
【英文介绍】
Description
Title: Spot wholesale Bentley Bently Nevada 3500 Vibration monitoring system 3500/22M interface module
BENTLY Vibration Detection System 3500 Introduction:
Bentley Bently Nevada 3500 system mechanical protection system, monitor module measurement range, meet the American Petroleum Institute 670 standard, can be used to measure shaft vibration, shaft displacement, key phase, speed, eccentricity, differential expansion, etc. Accepted from Bentley vibration sensor probe, Bentley 3300 eddy current sensor system (Bentley Bently 3300XL sensor probe, extension cable, preprocessor) as well as 330500, 9200, etc.
Product Model: 3500/22M Frame interface module with TDI
3500/22-01-01-00
3500/22-01-01-01
146031-01 Rear backplane
Features:
The communication gateway has a wide range of communication capabilities
Strong anti-interference ability
High system stability
Technical parameters:
Signal:
+/-10 Vdc I/O: -10 Vdc
To +10 Vdc
4-20mA Safety grid I/O: 4-
20mA DC
Input impedance:
4-20mA Insulated I/O: 50Ω
4-20mA Safety grid I/O: 50Ω
+/-10V I/O: 1 MΩ
Signal regulation
Design temperature +25°C (+77°F). per
The full scale range of the channel passes on site
3500 configuration software, no calibration required
Accuracy:
Usually within ±0/33% of full scale,
The maximum is ±1%
Full scale range:
The range of signal input can be divided into maximum
2000 units; Voltage signal input
The minimum range is 2V
