3500/05-01-02-00-00-01
3500/05-01-02-00-00-01

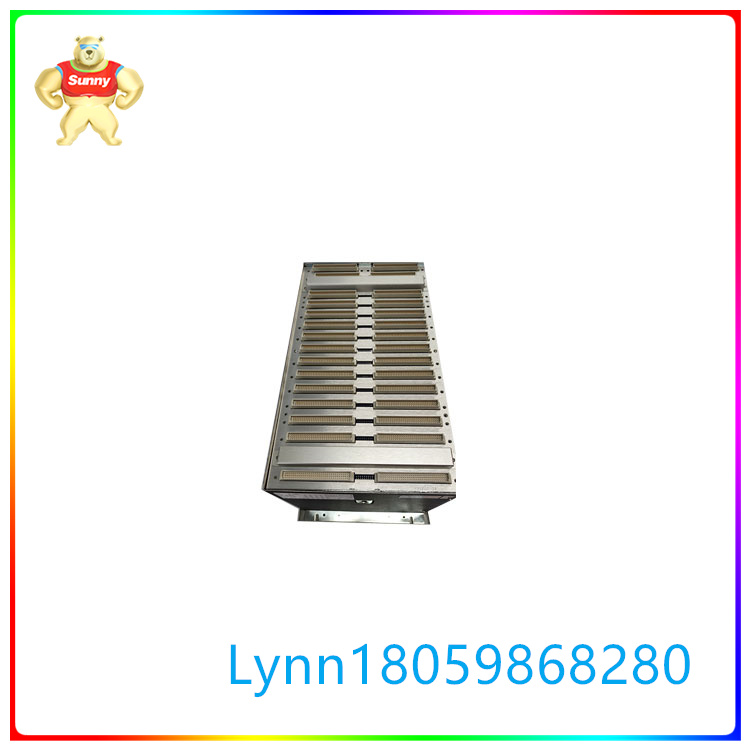

3500/05-01-02-00-00-01 3500系统机架 监控模块和机架电源

型号:3500/05-01-02-00-00-013500系统机架监控模块和机架电源【产品详情】3500系统机架设计包含所有3500个监控模块和机架电源。它允许

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:3500/05-01-02-00-00-01 3500系统机架 监控模块和机架电源







【产品详情】





3500系统机架设计包含所有3500个监控模块和机架电源。它允许各种3500个模块相互通信,并根据需要将电源分配到每个模块。

3500架有两种尺寸可供选择:

1. 全尺寸机架- 19英寸EIA机架,有14个可用模块插槽

2. 迷你机架- 12英寸机架,有7个可用模块插槽,3500个机架有三种格式:

1. 面板安装-这种机架形式安装在面板的矩形切口上,并使用机架提供的夹具固定到面板上。接线连接和I/O模块可从机架后部访问。

2. 机架安装-这种机架格式将3500机架安装在19英寸EIA导轨上。接线连接和I/O模块可从机架后部访问。

3.舱壁安装-当无法进入机架后部时,这种机架形式将机架安装在墙壁或面板上。布线连接和I/O模块可以从机架的前面进入。

3500/05 Mini-Rack没有这种格式。

电源和机架接口模块必须位于机柜最左边的位置。其余14个机架位置(7个机架位置为Mini-Rack)可用于任何模块组合。如果您计划在3500机架上安装内部屏障,请参阅我们的文件零件号141495-01,“3500内部屏障的规格和订购信息”。




型号:3500/05-01-02-00-00-01 3500系统机架 监控模块和机架电源






英文介绍





The 3500 System rack design includes all 3500 monitoring modules and rack power supplies. It allows various 3,500 modules to communicate with each other and distribute power to each module as needed.

3500 are available in two sizes:

1. Full-size rack - 19-inch EIA rack with 14 available module slots

2. Mini rack - 12 inch rack with 7 available module slots, 3500 rack available in three formats:

1. Panel Mount - This rack form is mounted on the rectangular cut of the panel and fixed to the panel using the fixture provided by the rack. Wiring connections and I/O modules are accessible from the rear of the rack.

2. Rack Mount - This rack format mounts 3500 racks on 19-inch EIA rails. Wiring connections and I/O modules are accessible from the rear of the rack.

3. Bulkhead mounting - This rack form mounts the rack on a wall or panel when access to the rear of the rack is not possible. Cabling connections and I/O modules can be accessed from the front of the rack.

The 3500/05 Mini-Rack does not have this format.

The power supply and rack interface modules must be placed at the leftmost position of the cabinet. The remaining 14 rack locations (7 of which are Mini-Rack locations) can be used for any module combination. If you plan to install internal barriers on 3500 racks, please refer to our document Part number 141495-01, "Specifications and Ordering Information for 3500 Internal Barriers".




型号:3500/05-01-02-00-00-01 3500系统机架 监控模块和机架电源
