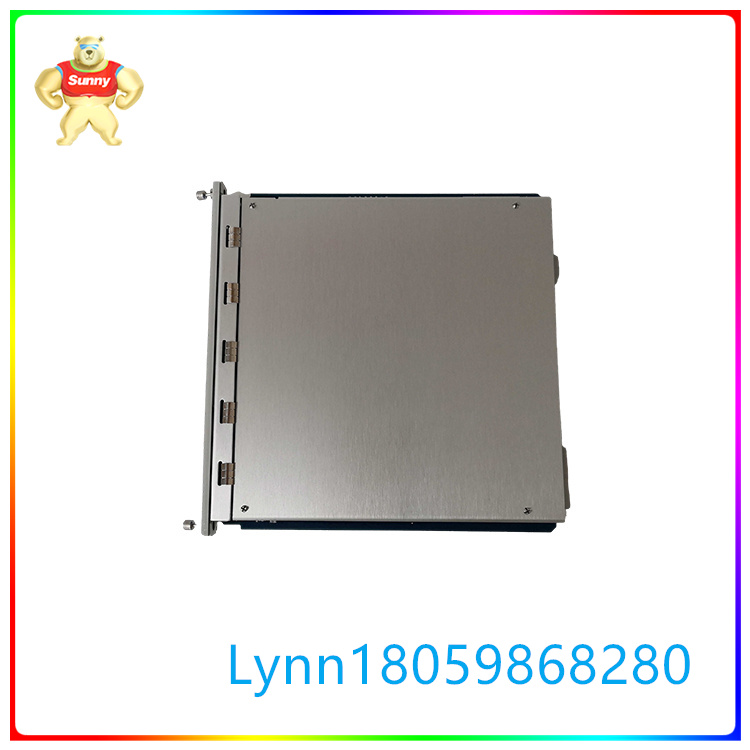

3500/92 136180-01 系统模块 机械振动监测系统

☆型号：3500/92 136180-01 系统模块 机械振动监测系统

【产品详情】

规格

产品型号：BENTLY 3500/92 136180-01

工作电压：24VDC

工作温度：-40℃ ~ 85℃

工作湿度：0 ~ 95%

接口类型：RS-485

技术说明

BENTLY 3500/92 136180-01采用了先进的机械振动监测技术，能够实时监测机械设备的振动状态，并将数据传输至控制系统进行分析和处理。它可以帮助用户及时发现机械问题，从而减少机械损坏和停机时间。

BENTLY 3500/92 136180-01是一种机械振动监测系统，用于监测旋转机械的振动水平。它可以检测轴承振动、机械不平衡以及其他机械问题，从而保障机械设备的正常工作。

3500系统能提供连续、在线监测功能，适用于机械保护应用，并为早期识别机械故障提供重要的信息。

系统的工作流程是：从现场取得的传感器输入信号提供给3500监测器框架内的监测器和键相位通道，数据被采集后，与报警点比较并从监测器框架送到一个地方或多个地方处理。

3500框架中模件的共同特征是带电插拔和内部、外部接线端子。任何主模件（安装在3500框架前端）能够在系统供电状态中拆除和更换而不影响不相关模块的工作，如果框架有两个电源，插拔其中一块电源不会影响3500框架的工作。

外部端子使用多芯电缆（每个模块一根线）把输入\输出模块与终端连接起来，这些终端设备使得在紧密空间内把多条线与框架连接起来变的非常容易，内部端子则用于把传感器与输入\输出模块直接连接起来。外部端子块一般不能与内部端子输入/输出模块一起使用。

☆型号：3500/92 136180-01 系统模块 机械振动监测系统

【英文介绍】

specification

Product Model: BENTLY 3500/92 136180-01

Working voltage: 24VDC

Operating temperature: -40℃ ~ 85℃

Working humidity: 0 ~ 95%

Interface type: RS-485

Technical specification

The BENTLY 3500/92 136180-01 incorporates advanced mechanical vibration monitoring technology to monitor the vibration status of mechanical equipment in real time and transmit the data to the control system for analysis and processing. It can help users detect mechanical problems in a timely manner, thereby reducing mechanical damage and downtime.

The BENTLY 3500/92 136180-01 is a mechanical vibration monitoring system designed to monitor the vibration levels of rotating machinery. It can detect bearing vibration, mechanical imbalance and other mechanical problems, so as to ensure the normal operation of mechanical equipment.

The 3500 system provides continuous, on-line monitoring for mechanical protection applications and provides important information for early identification of mechanical failures.

The work flow of the system is: the sensor input signal obtained from the field is provided to the monitor and key phase channel in the 3500 monitor frame, and the data is collected, compared with the alarm point and sent from the monitor frame to one or more places for processing.

The common features of the modules in the 3500 frame are live plug and plug and internal and external terminals. Any main module (mounted on the front end of the 3500 frame) can be removed and replaced in the system power supply state without affecting the operation of unrelated modules, and if the frame has two power supplies, plugging and unplugging one of them will not affect the operation of the 3500 frame.

The external terminals use multi-core cables (one wire per module) to connect the input/output module to the terminal, which makes it very easy to connect multiple lines to the frame in a tight space, and the internal terminals are used to connect the sensor directly to the input/output module. The external terminal block generally cannot be used with the internal terminal input/output module.
