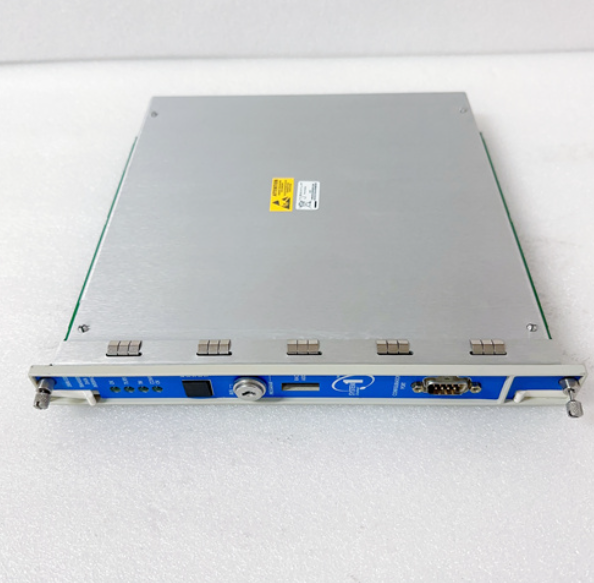

3500/22M 138607-01 接口模块 接口监控系统

☆型号：3500/22M 138607-01 接口模块 接口监控系统

【产品详情】

3500 TDI(暂态数据接口)是3500之间的接口监控系统和GE的system 1*机械管理软件。的TDI结合了3,500 /20机架接口模块(RIM)的能力数据收集能力的通信处理器，如TDXnet。TDI与M系列一起在3500机架的RIM插槽中运行监视器(3500/40M, 3500/42M等)连续采集稳态和暂态波形数据，并将该数据通过以太网链路传递给主机软件(请参阅本文档末尾的兼容性部分。)静态数据捕获是TDI的标准配置，但是使用一个可选的通道启用磁盘将允许TDI捕获动态或瞬态数据。的与以前的通信相比，TDI在几个方面进行了改进并将通信处理器功能集成到3500架。

振动监测器使用马达驱动的倾斜圆盘校准。圆盘上面有一个摇臂保持器将电涡流探头固定。通过将保持器和探头调节到适当位置，可以使机械振动大小达到预期值。该机械振动由校准装置中的刻度盘千分尺测量（不需要示波器）。

振动监测器的读数可以与已知的机械振动信号输出（即千分表测出的读数）进行比较。TK-3E 测得的机械振动信号范围从50 到254 μm (2 到10 mils) 峰峰值。

☆型号：3500/22M 138607-01 接口模块 接口监控系统

【英文介绍】

3500 TDI(Transient Data Interface) is the interface between 3500 monitoring systems and GE's system 1* machine management software. The TDI combines the data collection capabilities of 3500/20 rack interface modules (RIM) with communications processors such as TDXnet. Together with the M Series, the TDI runs monitors (3500/40m, 3500/42m, etc.) in the RIM slot of the 3500 rack to continuously collect steady-state and transient waveform data and pass this data over the Ethernet link to the host software (see the Compatibility section at the end of this document). Static data capture is standard for TDI, but using an optional channel-enabled disk will allow TDI to capture dynamic or transient data. Compared to previous communications, TDI has improved on several aspects and integrated communication processor capabilities into 3,500 units.

The vibration monitor is calibrated using a motor driven tilting disc. A rocker arm retainer on the disc holds the eddy current probe in place. By adjusting the retainer and probe to the appropriate position, the mechanical vibration size can be achieved to the desired value. The mechanical vibration is measured by a dial micrometer in a calibration device (no oscilloscope required).

The readings of the vibration monitor can be compared with the known output of the mechanical vibration signal (i.e. the reading taken by the dial meter). The TK-3E measured mechanical vibration signals ranging from 50 to 254 μm (2 to 10 mils) peak-peak values.

☆型号：3500/22M 138607-01 接口模块 接口监控系统
