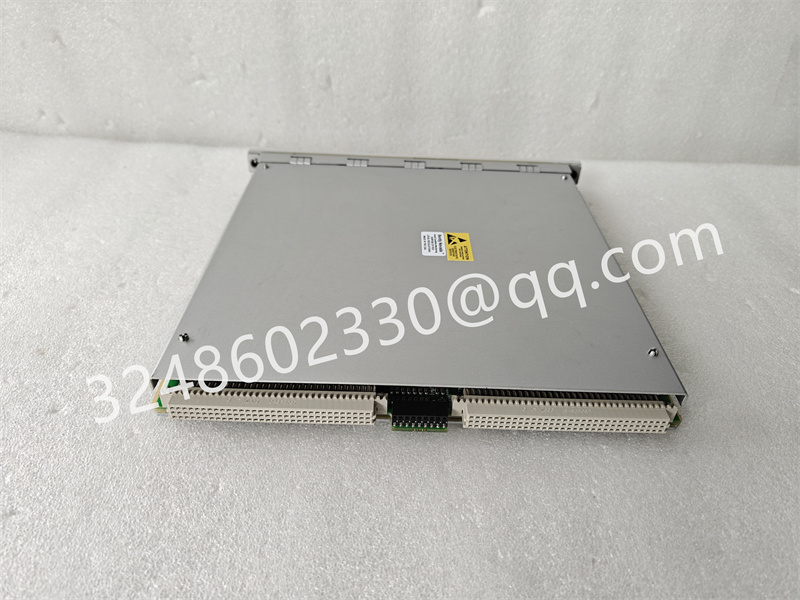

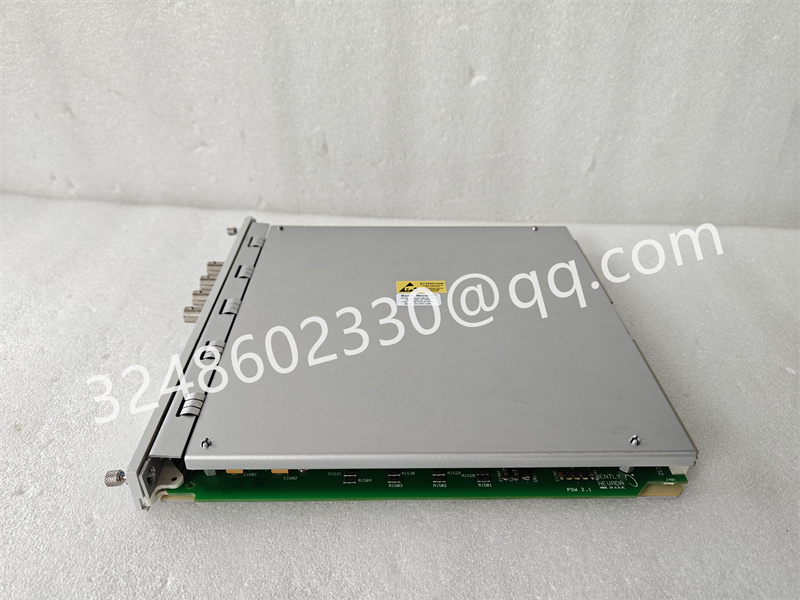

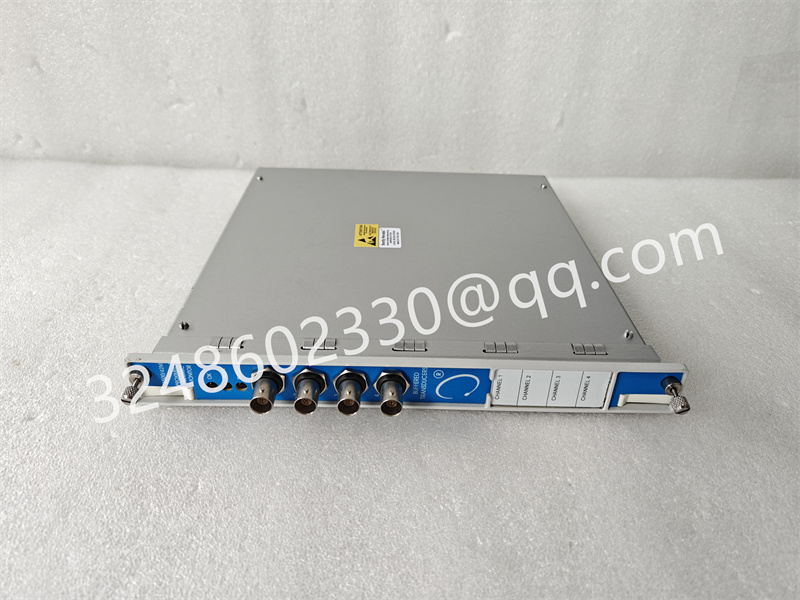

3500/42M 140734-02 前置地震监视器 地震传感器的输入

☆型号：3500/42M 140734-02 前置地震监视器 地震传感器的输入

【产品详情】

四通道监视器

提供各种振动和位置测量

输入阻抗10kΩ标准I/O

7.7W功耗

通道成对编程

Bently Nevada 的 3500/42M 前置器/地震监测器 为 3500 系统提供四个可编程通道，接受来自前置器和地震传感器的输

然后 3500/42M 调节信号以提供各种振动和位置测量，并将调节后的信号与用户可编程的警报进行比较。此外，每个通道都可以使用 3500 机架配置软件进行编程，以保护机械并监控径向振动、推力位置、膨胀差、偏心率、加速度、速度、轴绝对值和圆接受区域参数的条件。3500  /44M 航改型燃气轮机监测器 是用于 3500 系统的四通道航改型燃气轮机 (GT) 振动监测器。振动监测器接受四个振动通道。每个通道对都可以根据来自 3500 机架的最多四个不同的键相输入应用自己的跟踪滤波器。该监视器处理来自 Velomitor† 和加速度计的信号，过滤测量值，允许信号积分，并产生 1X 振动跟踪和带通振动，这对燃气轮机应用非常有用。

☆型号：3500/42M 140734-02 前置地震监视器 地震传感器的输入

【英文介绍】

Four-channel monitor

Various vibration and position measurements are available

Input impedance 10kΩ standard I/O

7.7W power consumption

Channel pair programming

Bently Nevada's 3500/42M preprocessor/seismic monitor provides four programmable channels for the 3500 system to accept input from the preprocessor and seismic sensor

The 3500/42M then adjusts the signal to provide various vibration and position measurements, and compares the adjusted signal with a user-programmable alarm. In addition, each channel can be programmed with 3500 rack configuration software to protect the machinery and monitor conditions for radial vibration, thrust position, expansion differential, eccentricity, acceleration, speed, shaft absolute value and circular acceptance area parameters. The 3500/44M Aero-modified Gas Turbine monitor is a four-channel aero-modified gas turbine (GT) vibration monitor for the 3500 system. The vibration monitor accepts four vibration channels. Each channel pair can apply its own tracking filter based on up to four different key phase inputs from the 3500 rack. The monitor processes signals from the Velomitor† and accelerometer, filters the measurements, allows the signal to integrate, and generates 1X vibration tracking and bandpass vibration, which is useful for gas turbine applications.
