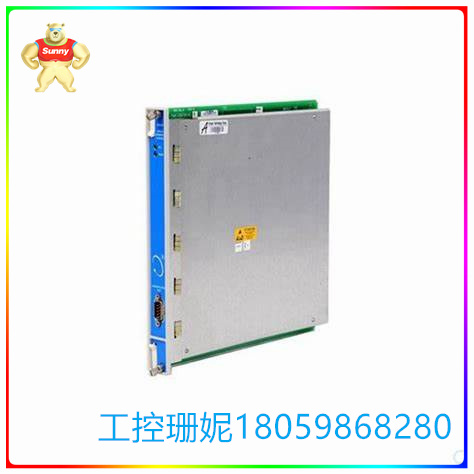

3500/91 161204-01 EGD网关模块 以太网通信

☆型号：3500/91 161204-01 EGD网关模块 以太网通信

【产品详情】

制造商:本特利内华达

产品编号:161204-01

产品型号:3500/91 EGD网关模块

美国制造

本手册包含3500/91 EGD网关的常规操作、配置和故障排除说明。在使用本指南中的信息之前，请确保模块已由合格的技术人员按照3500/91 EGD网关技术参考手册（零件号167060-01）中的说明正确安装、配置和验证。本指南中没有提供有关安装、一般配置、故障排除或维护的详细信息。

EGD网关提供3500监控系统和工厂信息系统之间的以太网通信，例如分布式控制系统（DCS）、可编程逻辑控制器（PLC）或人机界面（HMI）。通信网关模块通过高速内部网络从机架中的模块收集静态数据，并以预先选择的时间间隔将这些数据发送到信息系统。EGD网关支持以太网全局数据（EGD）协议版本2.01。该模块通过配置每个生成的交换机，允许多个独立调度的最佳通信。

☆型号：3500/91 161204-01 EGD网关模块 以太网通信

【英文介绍】

The EGD gateway provides Ethernet communication between 3500 monitoring systems and plant information systems, such as distributed control systems (DCS), programmable logic controllers (PLCS), or human machine interfaces (HMI). The communication gateway module collects static data from the modules in the rack via a high-speed internal network and sends this data to the information system at pre-selected intervals. The EGD gateway supports Ethernet Global Data (EGD) protocol version 2.01. This module allows optimal communication of multiple independent schedules by configuring each generated switch.

The EGD gateway provides Ethernet communication between 3500 monitoring systems and plant information systems, such as distributed control systems (DCS), programmable logic controllers (PLCS), or human machine interfaces (HMI). The communication gateway module collects static data from the modules in the rack via a high-speed internal network and sends this data to the information system at pre-selected intervals. The EGD gateway supports Ethernet Global Data (EGD) protocol version 2.01. This module allows optimal communication of multiple independent schedules by configuring each generated switch.
