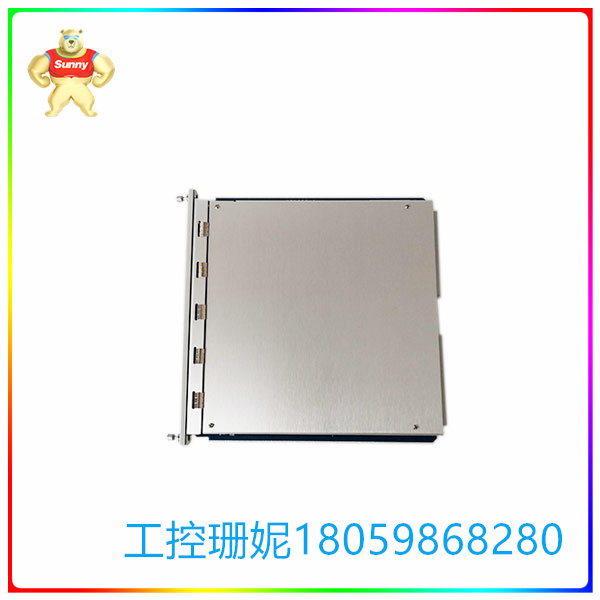

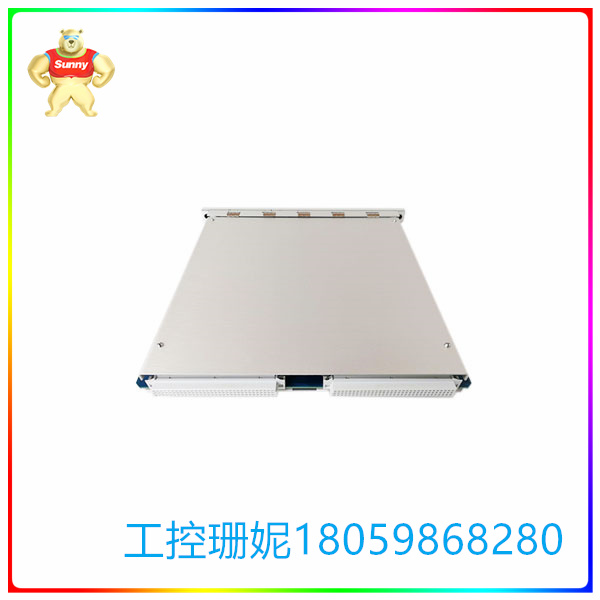

3500/92 136180-01 通信网关模块 提供了所有机架监控值

☆型号：3500/92 136180-01 通信网关模块 提供了所有机架监控值

【产品详情】

3500/92通信网关模块提供了广泛的所有机架监控值和状态的通信能力与过程控制和使用两者的其他自动化系统集成以太网TCP/IP和串行(RS232/RS422/RS485)通信能力。它还允许与3500机架配置软件进行以太网通信以及数据采集软件。支持的协议包括:

•Modicon®Modbus®协议(通过串行通信)Modbus/TCP协议(用于TCP/IP的串行Modbus的变体)以太网通信)

•专有的Bently Nevada协议(用于与3500 Rack通信组态及数据采集软件包)到3500/92的以太网连接是10BASE-T星型的RJ45连接配置以太网网络。

3500/92支持通信接口、通信协议、以及除主功能外的其他3,500 /90原始版本的功能value Modbus寄存器。3500/92现在有一个可配置的Modbus寄存器方法最初处理的相同功能Modbus寄存器的主值。

BENTLEY 136180-01 通信网关模块电涡流传感器系统:这种电涡流传感器系统提供大80 mils线性范围和200 mV/mil的输出。它在大多数机械监测应用中用于径向振动、轴向（侧向）位移、转速和相位测量，并符合美国石油协会标准6704版的要求。有多种螺纹尺寸、探头配置和安装附件可供选择。本特利在评估和确保工业设备的机械和热力学性能方面是的产品和服务供应商。公司在43个国家的主要工业中心设有100个办事处。其用户超过二万五千，分布于发电、石化以及其它众多行业是世界的产品和服务供应商，提供工业用机器及其它资产的机械学和热力学状态信息。拥有大的机械保护和连续状态监测系统安装容量，所提供的解决方案是有效的工厂资产管理策略的重要组成部分。一直致力于帮助用户保护和管理他们的机械。本特利不但是仪表制造公司，还是世界的机械。

☆型号：3500/92 136180-01 通信网关模块 提供了所有机架监控值

【英文介绍】

The 3500/92 Communication Gateway module provides a wide range of all rack monitoring values and status communication capabilities with process control and other automation systems using both integrated Ethernet TCP/IP and serial (RS232/RS422/RS485) communication capabilities. It also allows Ethernet communication with 3500 rack configuration software as well as data acquisition software. Supported protocols include:

•Modicon®Modbus® protocol (via serial communication)Modbus/TCP protocol (variant of serial Modbus for TCP/IP) Ethernet communication)

• The proprietary Bently Nevada protocol (used to communicate configuration and data acquisition packages with 3500 Rack) to the 3500/92 Ethernet connection is a 10BASE-T star RJ45 connection configuration Ethernet network.

The 3500/92 supports communication interfaces, communication protocols, and other functions of the 3500/90 original besides the main function value Modbus register. 3500/92 now has a configurable Modbus register method that originally handles the same function as the Modbus register's primary value.

BENTLEY 136180-01 Communication Gateway Module Eddy Current Sensor System: This eddy current sensor system provides a large 80 mils linear range and 200 mV/mil output. It is used for radial vibration, axial (lateral) displacement, rotational speed and phase measurement in most mechanical monitoring applications and meets the requirements of the American Petroleum Institute Standard 6704 edition. A variety of thread sizes, probe configurations and mounting accessories are available. Bentley is a supplier of products and services in assessing and ensuring the mechanical and thermodynamic performance of industrial equipment. The company has 100 offices in major industrial centers in 43 countries. With more than 25,000 users in power generation, petrochemicals and many other industries, it is the world's leading supplier of products and services, providing information on the mechanical and thermodynamic state of industrial machinery and other assets. With a large installed capacity for mechanical protection and continuous condition monitoring systems, the solutions provided are an essential part of an effective plant asset management strategy. We are committed to helping users protect and manage their machinery. Bentley is not only an instrument manufacturing company, but also the machinery of the world.
