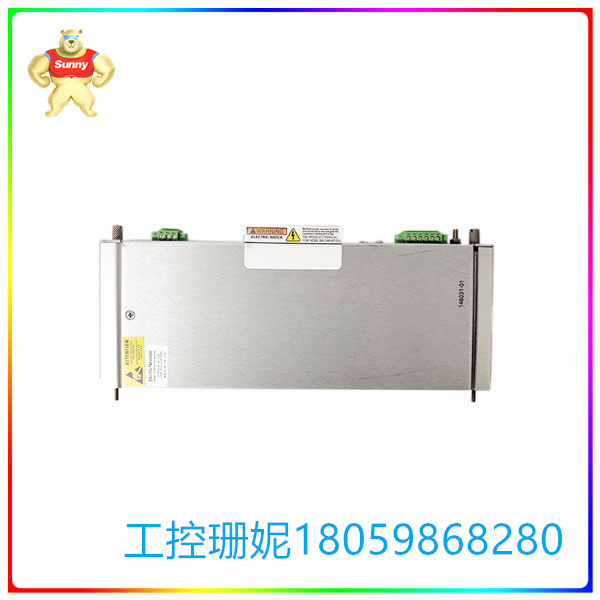

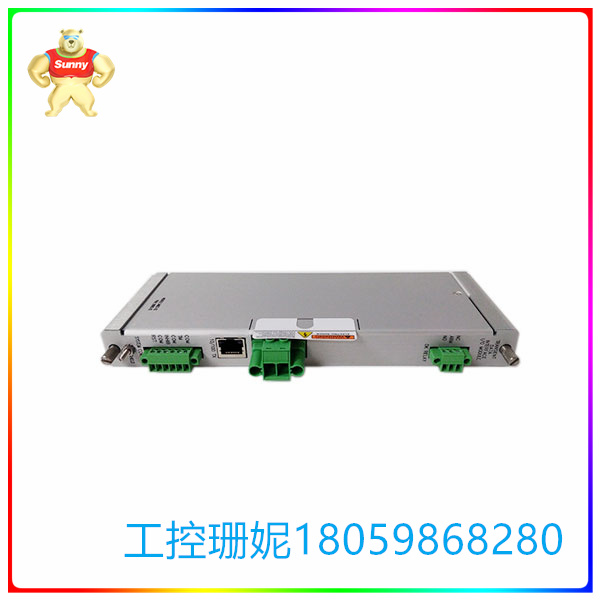

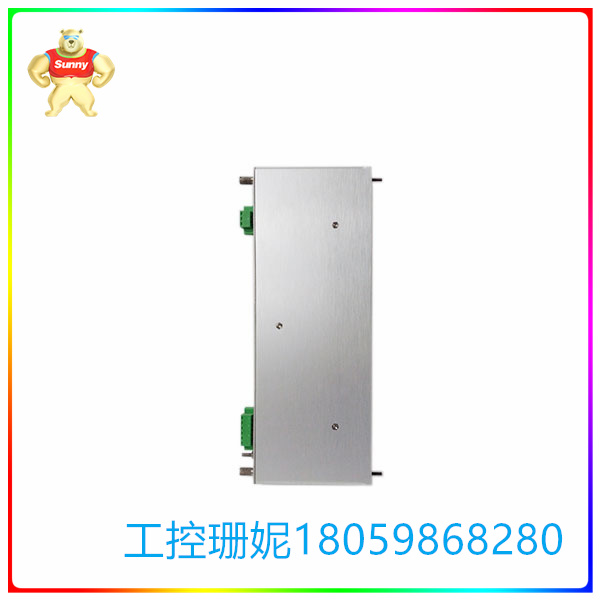

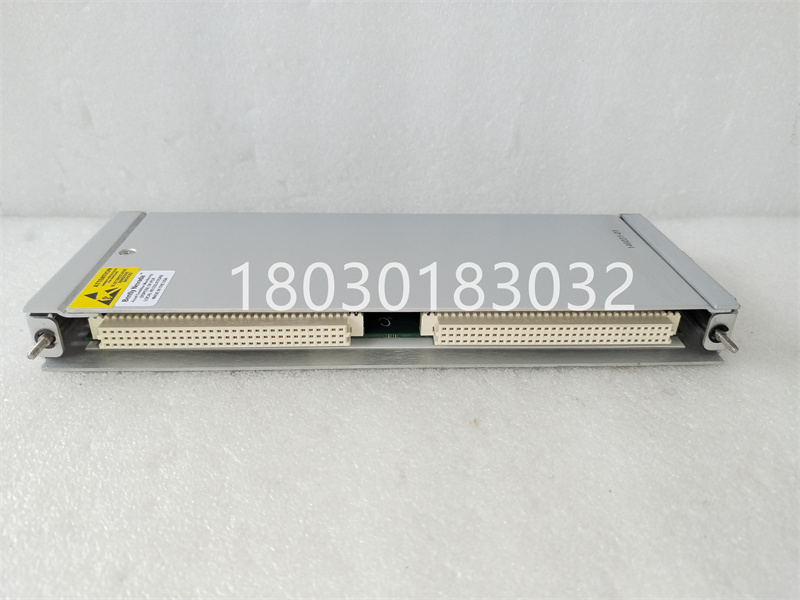

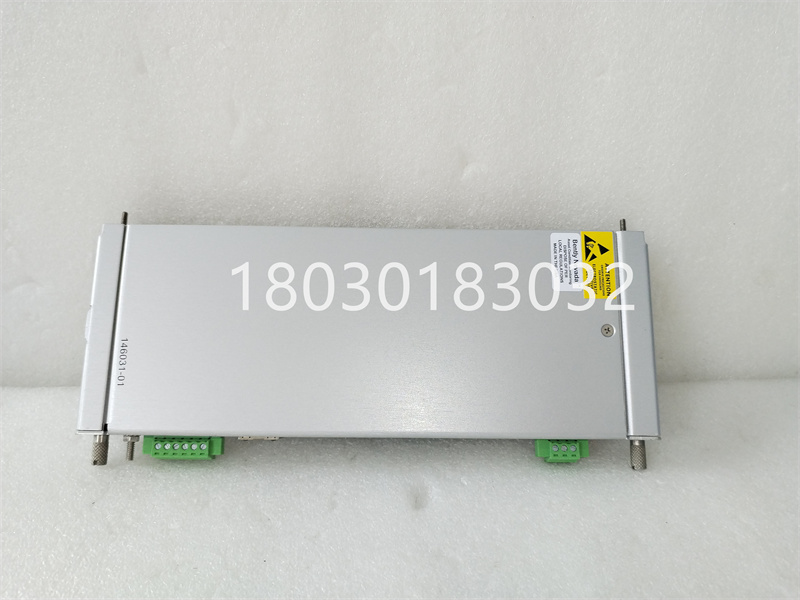

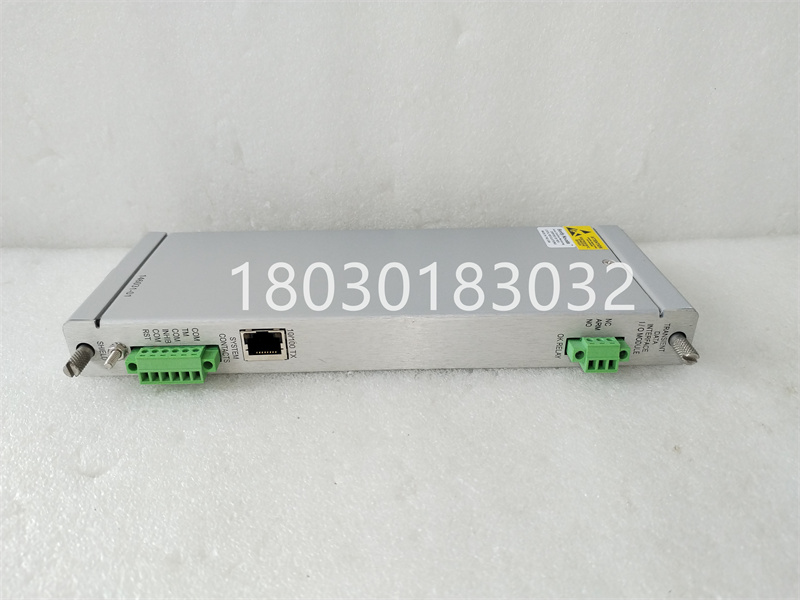

3500/22M 146031-01 I/O 模块 瞬态数据接口

☆型号：3500/22M 146031-01  I/O 模块 瞬态数据接口

【产品详情】

特点:

3500监控系统和系统1机械管理软件之间的接口

将3500/20 RIM的功能与通信处理器相结合

与M系列显示器配合使用

Bently Nevada 3500/22M系列瞬态数据接口(TDI)是3500监控系统和Bently Nevada的System 1机器管理软件之间的接口。TDI将3500/20框架接口模块的功能与TDXnet等通信处理器的数据收集功能相结合。

TDI与M系列显示器(3500/40M、3500/42M等)一起在3500机架的RIM插槽中运行。)连续收集稳态和瞬态波形数据，并通过以太网链路将该数据传递给主机软件。静态数据采集是TDI的标准配置，但是使用可选的通道使能盘也可以采集动态或瞬态数据。TDI除了在3500框架中整合通信处理器功能外，还在几个方面对之前的通信处理器进行了改进。

TDI提供整个机架共有的某些功能，但是TDI不是关键监控路径的一部分，对整个监控系统的正常运行没有影响。每个机架需要一个TDI或RIM。TDI仅占用机架中的一个插槽，并且始终位于插槽1中(靠近电源)。

对于三模冗余(TMR)应用，3500系统需要一个TMR版本的TDI。除了所有标准TDI功能外，TMR TDIalso还执行“监控通道比较”。3500 TMR配置使用监控选项中指定的设置执行监控投票。使用这种方法，TMR TDI不断比较三(3)个冗余监视器的输出。如果TMR检测到其中一个监视器的信息不再等同于其余两个监视器的信息(在配置的百分比范围内),它会将该监视器标记为出错，并在系统事件列表中放置一个事件。

☆型号：3500/22M 146031-01  I/O 模块 瞬态数据接口

【英文介绍】

Features:

3500 Interface between the monitoring system and System 1 mechanical management software

Combine the capabilities of 3500/20 RIM with a communications processor

Works with M-series displays

The GE/Bently Nevada 3500/22M Series Transient Data Interface (TDI) is the interface between the 3500 monitoring System and Bently Nevada's System 1 machine management software. TDI combines the capabilities of 3500/20 framework interface modules with the data collection capabilities of communication processors such as TDXnet.

The TDI runs in a RIM slot in the 3500 rack with M-series displays (3500/40M, 3500/42m, etc.). Continuous collection of steady-state and transient waveform data and transmission of this data to the host software over the Ethernet link. Static data acquisition is standard with TDI, but dynamic or transient data can also be acquired using the optional channel enable disk. In addition to integrating communication processor functions in the 3500 framework, TDI improves on previous communication processors in several ways.

The TDI provides certain functions common to the entire rack. However, the TDI is not part of the critical monitoring path and has no impact on the normal running of the entire monitoring system. Each rack requires one TDI or RIM. The TDI occupies only one slot in the rack and is always located in slot 1 (near the power supply).

For three-mode redundancy (TMR) applications, the 3500 system requires a TMR version of TDI. In addition to all standard TDI functions, TMR TDIalso performs a "monitor channel comparison." 3500 TMR configuration performs monitoring voting using the Settings specified in Monitoring options. Using this approach, TMR TDI constantly compares the output of three (3) redundant monitors. If TMR detects that information from one of the monitors is no longer equivalent to information from the remaining two monitors (within the configured percentage range), it flags that monitor as an error and places an event in the system event list.

☆型号：3500/22M 146031-01  I/O 模块 瞬态数据接口
