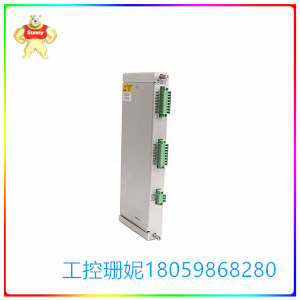

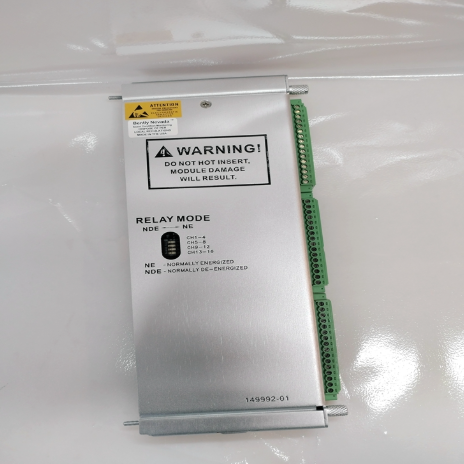

149992-01 16 通道继电器输出模块

☆型号：149992-01 16 通道继电器输出模块

【产品详情】

制造商:本特利内华达

产品编号:149992-01

产品类型:备用16路继电器输出模块

美国制造

运输重量:3公斤

16通道继电器模块是一个全高模块，提供16个继电器输出。任意数量的16通道继电器模块可以放置在任何机柜接口模块右侧槽位。每个输出16通道继电器模块可以独立编程执行所需的投票逻辑。

在16通道继电器模块上使用的每个继电器都包括“报警驱动逻辑”。编程的报警驱动器逻辑采用与或逻辑，并可使用报警输入(警报和危险状态)，不- OK，或来自个别ppl机架中的任何监视器通道或监视器通道的任何组合。用户使用3500机架配置软件编程此告警驱动器来满足应用程序的特定需求。

1. 3500台监视器按倍数订购批准选项(-02)被认证为区域2标准(包括ATEX和北美区)。Zone 2标准指定增加在较高电压下的间距要求

3500/33继电器不符合这些间距要求。因此，3500/33继电器使用多个批准选项订购历史上是否被限制在一个较低的水平电压比与另一种排列的电压高批准的选择。使用更高的电压违反危险区域证书与多个批准选项关联。(北美2区标准与CSA-only approvals选项相关联(-01)已降至30Vrms以配合符合61010-1型试验要求。)

2. 如果3500/33是功能安全的一部分(SIL)系统，功能安全证书需要限制电压。更高的电压不允许使用功能安全(SIL)系统。

3.可以将现场接线连接到3500/33继电器这样的导体暴露于潜在的人类接触。这可能在高压下有触电危险。客户应只使用3500/33继电器电压高达30 Vrms。适当的安全应采取预防措施电击的危险。

☆型号：149992-01 16 通道继电器输出模块

【英文介绍】

Manufacturer: Bentley, Nevada

Product Number :149992-01

Product type: Spare 16 relay output module

Made in the USA

Shipping weight :3 kg

The 16 channel relay module is a full height module that provides 16 relay outputs. Any number of 16-channel relay modules can be placed in the right slot of the interface module in any cabinet. Each output 16-channel relay module can be independently programmed to perform the required voting logic.

Each relay used on a 16-channel relay module includes "alarm drive logic". Programmed alarm driver logic adopts with or logic, and may use alarm inputs (alarm and danger status), no-OK, or any combination of any monitor channel or monitor channel from an individual ppl rack. The user uses 3500 rack configuration software to program this alarm driver to meet the specific needs of the application.

1. 3,500 monitors are certified to Region 2 standard (including ATEX and North America) under the multiple Order Approval option (-02). The Zone 2 standard specifies increased spacing requirements at higher voltages

The 3500/33 relay does not meet these spacing requirements. As a result, 3500/33 relays use multiple approved options to order whether historically they have been limited to a lower horizontal voltage than the higher approved voltage of another arrangement. The use of higher voltage violation hazardous area certificates is associated with multiple approval options. (The North American Area 2 standard associated with the CSA-only approvals option (-01) has been reduced to 30Vrms to comply with type 61010-1 trial requirements.)

2. If 3500/33 is part of the Functional Safety (SIL) system, the functional safety certificate requires a limited voltage. Higher voltages do not allow the use of functional safety (SIL) systems.

3. Field wiring can be connected to 3500/33 relays such conductors are exposed to potential human contact. This could pose a risk of electrocution at high pressure. Customers should only use 3500/33 relays with voltages up to 30 Vrms. Proper safety should take precautions against the danger of electric shocks.

☆型号：149992-01 16 通道继电器输出模块
