3500/42-01-00 速度加速度监测器 轴绝对振动

☆型号：3500/42-01-00 速度加速度监测器 轴绝对振动

【产品详情】

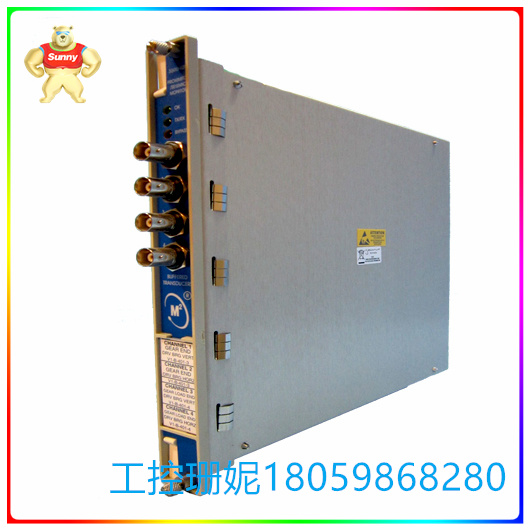

本特利Bently 3500/42M 位移/速度加速度监测器是一个4 通道监测器，它可以接受 1 到 4 个来自位移、速度、速度或加速度传感器的信号，通过对这些信号的处理，它可以完成各种不同的振动和位置测量，并将处理的信号与用户编程的报警值进行比较。3500/42M 的每个通道均可以使用3500 框架组态软件进行编程，完成下列各种功能：

三重冗余 三个总线型 TMR I/O 通道并联到

径向振动 （TMR）  一个传感器上的有效阻抗为 50 千

轴向位移  I/O:  欧

差胀

偏心 功率:  正常消耗为 7.7 瓦

加速度

速度

轴绝对振动

圆形可接受区

美国本特利Bently 3500/15电源模块是半高度模块，本特利Bently3500/15电源模块(卡件)必须安装在框架左边特殊设计的槽口内。3500 框架可装有一个或两个电源(交流或直流的任意组合)。其中任何一个电源都可给整个框架供电。如果安装两个电源，第二个电源可做为第一个电源的备份。上海心雨机电设备有限公司 田先生  021-60510270 15021186744 .当安装两个电源时，上边的电源作为主电源，下边的电源作为备用电源，只要装有一个电源，拆除或安装第二个电源模块将不影响框架的运行。 3500 电源能接受大范围的输入电压，并可把该输入电压转换成其它3500 模块能接受的电压。对于 3500 机械保护系统，有以下三种电源：

1.交流电源175 到 264 Vac， (通常220V)交流电源)

2.高压直流电源

3.低压直流电源

运行温度: -30°C 到 +65°C (-22°F 到 +150°F)。

储藏温度: -40°C 到 +85°C (-40°F 到 +185°F)。

湿度: 95%，非冷凝。

订货信息

3500/15-AXX-BXX-CXX

常用型号：3500/15-02-02-00，3500/15-02-00-00

常用备件：127610-01 ，125840-01

本特利内华达(BENTLY Nevada)在评估和确保工业设备的机械和热力学性能方面是全球领先的产品和服务供应商。公司在全球43个国家的主要工业中心设有100个办事处。其全球用户超过二万五千，分布于发电、石化以及其它众多行业。

本特利(bently)产品介绍

监测系统用于接收来自多种传感器的信号，并连续监测和显示重要的机器参数。当机械状态超出用户设定的界限时，就会激发报警信号。这些报警信号能够自动停机和/或向运行人员以及工厂中的其他人员发出机械故障警告。可选的数据采集硬件提供机械保护系统和我们的System 1状态监测软件之间的链接。关于我们的机械保护系统（3500，1701，3300和1900）和我们的数据采集硬件 （如DI,DDI,TDXnet等）的产品信息均包含在这一部分当中。

本特利Bently传感器通常安装于机器内部或表面，用于测量振动、位移、转速、压力、扭矩及能量等。本特利内华达提供多种传感器，均可满足工业环境的使用要求，部分传感器在采取本质安全栅、电磁绝缘等方法后，可安装于危险地区。如果您的需求不在我们的标准产品范围内，我们还可以对已有产品进行改造，或开发出全新的产品，以满足您的需要。

☆型号：3500/42-01-00 速度加速度监测器 轴绝对振动

【英文介绍】

The Bentley Bently 3500/42M displacement/Velocity acceleration monitor is a 4-channel monitor that can accept 1 to 4 signals from displacement, speed, speed or acceleration sensors, and by processing these signals, it can complete a variety of vibration and position measurements. The processed signals are compared with the alarm values programmed by the user. Each channel of 3500/42M can be programmed using the 3500 Framework configuration software to accomplish the following functions:

Triple redundancy Three bus TMR I/O channels in parallel

Radial vibration (TMR) The effective impedance on a sensor is 50 kilowatts

Axial displacement I/O: Ohm

Differential expansion

Eccentric power: Normal consumption is 7.7 watts

acceleration

speed

Shaft absolute vibration

Circular acceptable zone

The Bentley Bently3500/15 power module is a half-height module, and the Bentley Bently3500/15 power module (card) must be installed in a specially designed notch on the left side of the frame. The 3500 frame can be equipped with one or two power supplies (any combination of AC or DC). Any one of these power supplies can power the entire frame. If two power supplies are installed, the second power supply can be used as a backup of the first power supply. Shanghai Xinyu Electromechanical Equipment Co., LTD. Mr. Tian 021-60510270 15021186744. When two power supplies are installed, the upper power supply is used as the main power supply, and the lower power supply is used as the backup power supply. As long as one power supply is installed, removing or installing the second power module will not affect the operation of the frame. The 3500 power supply can accept a wide range of input voltages, and can convert the input voltage to other 3500 modules can accept the voltage. For the 3500 mechanical protection system, there are three power supplies:

1. Ac power 175 to 264 Vac, (usually 220V) AC power supply)

2. High voltage DC power supply

3. Low voltage DC power supply

Operating temperature: -30°C to +65°C (-22°F to +150°F).

Storage temperature: -40°C to +85°C (-40°F to +185°F).

Humidity: 95%, non-condensing.

Ordering information

3500/15-AXX-BXX-CXX

Common models: 3500/15-02-02-00, 3500/15-02-00-00

Common spare parts: 127610-01, 125840-01

BENTLY Nevada is a leading global provider of products and services for evaluating and ensuring the mechanical and thermodynamic performance of industrial equipment. The company has 100 offices in major industrial centers in 43 countries around the world. It has more than 25,000 users worldwide in power generation, petrochemicals and many other industries.

bently products introduction

The monitoring system is used to receive signals from a variety of sensors and continuously monitor and display important machine parameters. When the mechanical state exceeds the limits set by the user, an alarm signal is triggered. These alarm signals can automatically shut down and/or warn operators and others in the plant of mechanical failure. Optional data acquisition hardware provides a link between the mechanical protection System and our System 1 condition monitoring software. Product information about our mechanical protection systems (3500,1701,3300 and 1900) and our data acquisition hardware (e.g. DI,DDI,TDXnet, etc.) is included in this section.

Bentley Bently sensors are typically installed inside or on the surface of machines to measure vibration, displacement, speed, pressure, torque and energy. Bentley Nevada offers a wide range of sensors that meet the requirements of industrial environments, and some sensors can be installed in hazardous areas with intrinsic safety barriers, electromagnetic insulation, and other methods. If your needs are not within our standard range of products, we can also modify existing products, or develop completely new products to meet your needs.

☆型号：3500/42-01-00 速度加速度监测器 轴绝对振动
