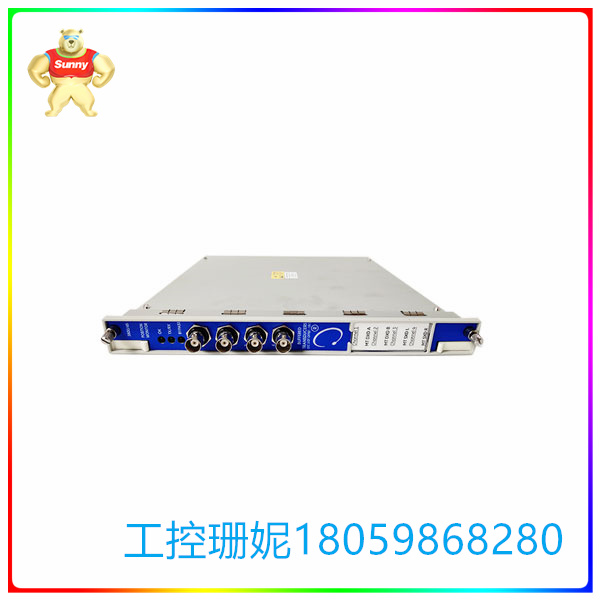

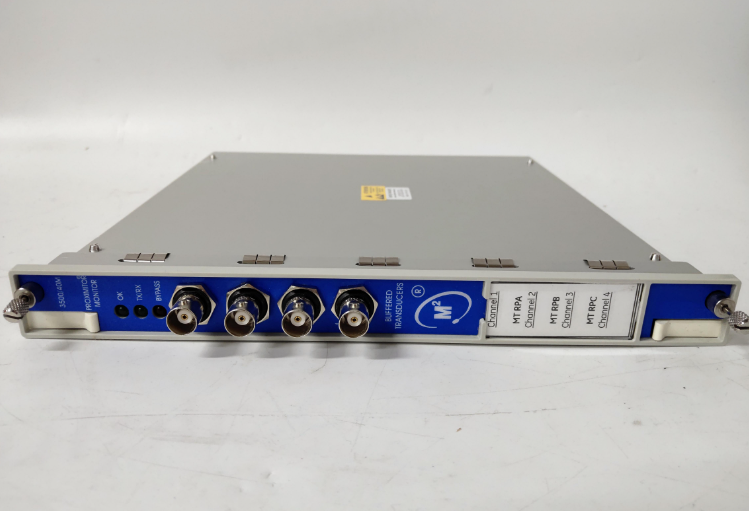

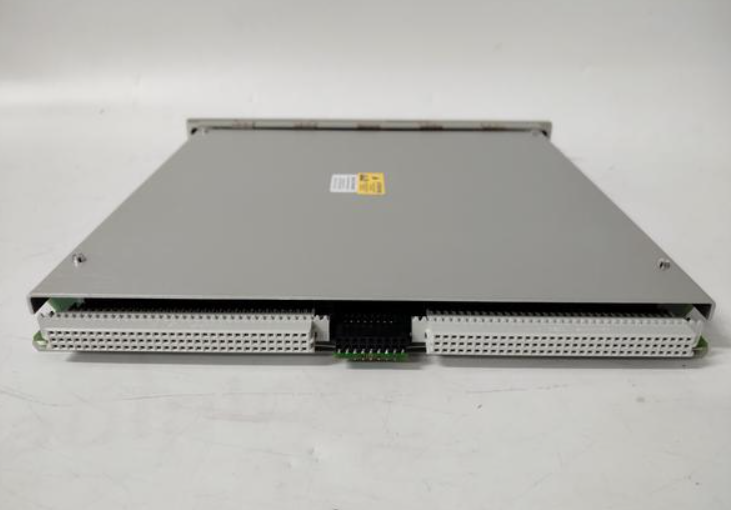

3500/45 140072-04 4通道 位置监视器 可变差速器变压器

☆型号：3500/45  140072-04 4通道  位置监视器  可变差速器变压器

【产品详情】

位置监视器是一个4通道仪器接受来自接近传感器的输入，旋转位置换能器(RPTs)，直流线性变量微分变压器(直流lvdt)，交流线性可变差速器变压器(交流lvdt)和旋转电位器。的监控条件输入和比较条件带有用户可编程报警的信号。测量和换能器输入的类型确定需要哪些I/O模块。看到用于位置测量的传感器类型第10页。参见第12页的图表。，看交流lvdt和旋转电位器的I/O模块14页。您可以使用3500机架编程每个频道配置软件执行

所有设备 3500/45 140072-04 应从运输集装箱中取出并目视检查，以确保没有运输损坏。如果运输损坏明显，请向承运人提出索赔，并向本特利内华达公司提交副本。在所有通信中包括部件号和序列号。如果没有明显的损坏并且设备不会立即使用，本特利内华达公司建议将设备放回运输容器并重新密封。

3500/45 140072-04 设备应存放在没有潜在破坏性条件（如高温、湿度过高或腐蚀性环境）的环境中。有关环境规范，

请参阅附录 B。设备经久耐用;但是，在安装过程中应采取合理的操作谨慎措施。当电缆连接器是设备的一部分时，必须用 FEP 胶带或其他连接保护装置包裹它们，以适当保护它们免受油、水或其他物质的物理滥用或污染。

☆型号：3500/45  140072-04 4通道  位置监视器  可变差速器变压器

【英文介绍】

The Position Monitor is a 4-channel instrument that accepts input from proximity sensors, rotary position transducers (RPTs), DC linear variable differential transformers (DC lvdt), AC linear variable differential transformers (AC lvdt), and rotary potentiometers. The monitoring condition input and comparison condition have a user programmable alarm signal. The type of measurement and transducer input determines which I/O modules are needed. See page 10 of Sensor types for position measurement. See the chart on page 12. See AC lvdt and rotary Potentiometer I/O module on page 14. You can use 3500 rack programming per channel configuration software to perform

All equipment 3500/45 140072-04 should be removed from the shipping container and visually inspected to ensure there is no shipping damage. If shipping damage is evident, file a claim with the carrier and submit a copy to Bentley Nevada Inc. Include part numbers and serial numbers in all communications. If there is no obvious damage and the device will not be used immediately, Bentley Nevada recommends returning the device to its shipping container and resealing it.

3500/45 140072-04 Equipment should be stored in an environment free from potentially destructive conditions such as high temperature, excessive humidity, or corrosive environments. Regarding environmental regulations,

Please refer to Appendix B. The equipment is durable; However, reasonable operational care should be taken during installation. When cable connectors are part of the device, they must be wrapped with FEP tape or other connection protection to properly protect them from physical abuse or contamination by oil, water, or other substances.

☆型号：3500/45  140072-04 4通道  位置监视器  可变差速器变压器
