PN330500 速度计/压电式速度传感器 测量轴承箱体

☆型号：PN330500 速度计/压电式速度传感器 测量轴承箱体

【产品详情】

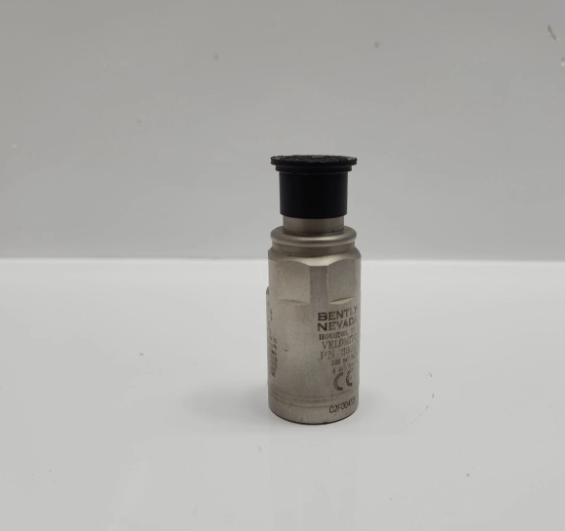

330500速度计(Velomitor)压电式速度传感器用于测量轴承箱体、壳体或结构的绝对(相对于自由表面）振动。与带有运动部件的速度传感器，如BentlyNevada Seismoprobe*系列速度传感器不同，Velomitor传感器采用晶体形式，在压电式加速度计的基础上进行专业化设计，嵌入积分电路。因其采用晶体电路，没有移动部件，所以不会产生磨损和退化，并且可以垂直、水平或以任何角度安装。

功能与优点:

330500 Velomitor®速度传感器用于测量轴承箱体、壳体或结构的绝对（相对于自由表面）振动，它采用高灵敏度压电晶体，并在传感器壳体内部集成了积分电路，没有移动部件，所以不会产生磨损和退化，并且可以垂直、水平或以任何角度安装。

对于特殊环境下需要IP65或NEMA 4X防护等级的应用，330525 Velomitor® XA（扩展应用）是理想的选择。330525实际上是330500的加固耐用版，它具有316L不锈钢外壳、独特的防护联接头和电缆组件，在安装时不需要再额外配置防尘防水罩

注意：

如果壳振测量是为了对机器进行整体保护，应考虑每种测量方案的有效性。最常见的机器故障（不平衡和不对中等）都在转子上发生，并引起转子振动的增加（至少发生变化)。如果希望只通过壳体振动测量对机器进行有效的整体保护，必须有足够大的真实转子振动传送到轴承座或机壳上，更具体的说是传送到传感器的安装位置上才能实现。此外，对传感器的安装要多加注意。不正确的安装会引起传感器性能下降，或者产生不真实的振动信号。若将输出积分成位移，这种错误会更加严重。

灵敏度：3.94mV/mm/s(100mV/in/s)±5%

频率响应：4.5Hz至5kHz（270cpm至300kcpm）±3.0dB，6.0Hz至2.5kHz（360cpm至150kcpm）±0.9dB

Velomitor压电式速度传感器

330500-AXX-BXX

连接电缆

9571：2芯屏蔽双绞电缆, 22AWG一端带有2-插座防水凹接头，另一端带有终端接线片。可与监测器共同使用。不能与21128速度传感器防护壳一起使用。最小长度：2.0英尺（0.6米）最大长度：99英尺（30米）

84661：2芯屏蔽铠装双绞电缆, 22AWG，一端带有双插座防水凹接头，另一端带有终端接线片。可与监测器共同使用。不能与21128速度传感器防护壳一起使用。最小长度：3.0英尺（0.9米）最大长度：96英尺（29米）

☆型号：PN330500 速度计/压电式速度传感器 测量轴承箱体

【英文介绍】

330500 Velomitor Piezoelectric speed sensors are used to measure the absolute (relative to the free surface) vibration of a bearing housing, housing or structure. Unlike speed sensors with moving parts, such as the BentlyNevada Seismoprobe* series, the Velomitor sensor is in crystal form, specially designed on the basis of a piezoelectric accelerometer and embedded with an integrated circuit. Because it uses a crystal circuit and has no moving parts, it does not cause wear and degradation, and can be installed vertically, horizontally or at any Angle.

Features and Benefits:

The 330500 Velomitor® speed sensor is used to measure the absolute (as opposed to free surface) vibration of a bearing housing, housing or structure. It uses highly sensitive piezoelectric crystals, integrates an integral circuit inside the sensor housing, has no moving parts, so it does not cause wear and degradation, and can be installed vertically, horizontally or at any Angle.

For applications requiring IP65 or NEMA 4X protection in special environments, the 330525 Velomitor® XA (Extended Application) is the ideal choice. The 330525 is actually a rugged version of the 330500, with a 316L stainless steel housing, unique protective coupling and cable assembly, and no additional dust and waterproof cover is required for installation

Attention:

If the shell vibration measurement is for the overall protection of the machine, the effectiveness of each measurement scheme should be considered. The most common machine failures (unbalance and misalignment) occur on the rotor and cause an increase (or at least a change) in rotor vibration. If you want to effectively protect the machine as a whole only by measuring the vibration of the housing, you must have a large enough real rotor vibration to be transmitted to the housing or housing, and more specifically to the installation position of the sensor. In addition, more attention should be paid to the installation of sensors. Improper installation can cause degradation of sensor performance or produce an unreal vibration signal. This error is even more serious if the output is integrated into displacements.

Sensitivity: 3.94mV/mm/s(100mV/in/s)±5%

Frequency response: 4.5Hz to 5kHz (270cpm to 300kcpm) ±3.0dB, 6.0Hz to 2.5kHz (360cpm to 150kcpm) ±0.9dB

Velomitor piezoelectric speed sensor

330500-AXX-BXX

Connecting cable

9571:2-core shielded twiped-pair cable, 22AWG with 2-socket waterproof recessed connector at one end and terminal lug at the other end. Can be used in conjunction with the monitor. Cannot be used with 21128 speed sensor housing. Minimum Length: 2.0 feet (0.6 m) Maximum length: 99 feet (30 m)

84661:2-core shielded armored twiped-pair cable, 22AWG, one end with double receptacle waterproof recessed, the other end with terminal lug. Can be used in conjunction with the monitor. Cannot be used with 21128 speed sensor housing. Minimum Length: 3.0 feet (0.9 m) Maximum length: 96 feet (29 m)
